Air Pressure Sensor (APS)

For air pressure applications

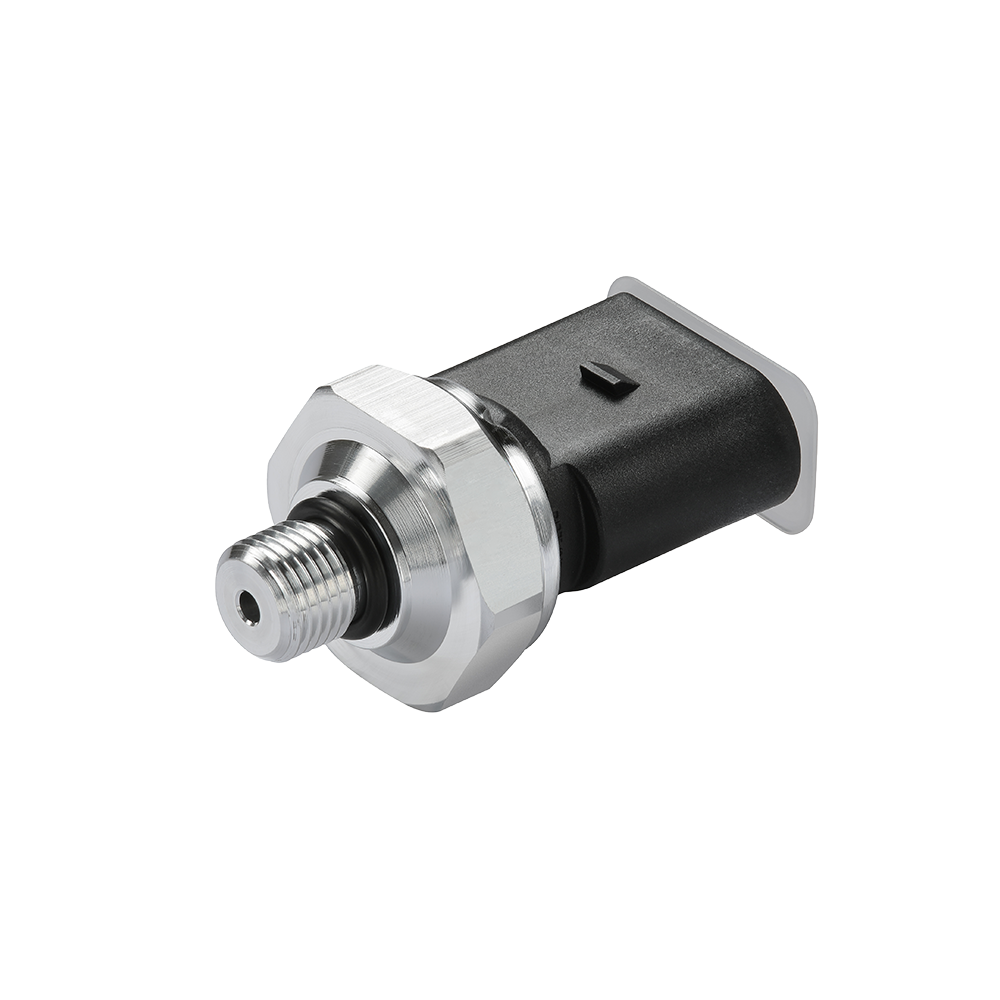

The Air Pressure Sensor was derived from our Climate Control Pressure Transmitter (CCT). This hermetically sealed and robust aluminum housing makes this sensor a cost-effective solution. The APS is compatible with a wide range of media thanks to its high-quality stainless steel measuring element. Its innovative evaluation electronics reliably provide highly accurate measurement data over a wide temperature range via an analog interface.

Specifically tailored to the requirements of the automotive industry, the CCT also complies with the current provisions regarding EMC and ESD.

file_download Download data sheet

FIELDS OF APPLICATION
  • On board and build in air compressor for trucks and SUV
FEATURES

Specially designed stainless-steel measuring element

  • Excellent long-term stability
  • High compatibility with fluids

Application-specific evaluation electronics

  • Tried-and-tested automotive EMC/ESD resistance
  • Extended diagnostic and protective functions
  • Corrosion resistant
  • Light weight
  • Cost effective

Variety of analogue and digital output signals available

  • Easy integration into existing systems
  • High volume production line available (up to 2 Mio. pieces per year)
TECHNICAL SPECIFICATION
Measurement range
Nominal pressure −1 bar–10 bar
Over pressure 70 bar
Burst pressure 105 bar
Pressure type Relative

Electrical characteristics
Supply voltage 5 V±0.5 V
Current consumption max. 10 mA
Output signals 0.5–4.5 V, ratiometric

Mechanical characteristics
Measuring element Stainless steel cell with resistive measuring bridge
Housing material Aluminium
Pressure connection HEX 24, M10×1.26
Thread Female thread 1)
Electrical connection 3-pin RD plug 1)
Installation position Any
Weight Approx. 16 g

Accuracy
Total pressure error ±1 % FS (20–80 °C),
±2 % FS (−40–125 °C) 2)

Environmental conditions
Operating temperature range −40–125 °C
Media temperature range −40–125 °C (150 °C)
Media compatibility Air


1) Other pressure and electrical connections available on request
2) Includes repeatability, hysteresis, non-linearity (TBL), calibration and temperature effects; depends on pressure and temperature range

Similar sensors

CCT pressure sensor

The climate-control pressure transmitter (CCT) was developed specifically for measuring the pressure of refrigerants in motor vehicles.

CCT pressure/temperature sensor

The CCT pressure temperature sensor is often used in heat pumps for climate control systems and in thermal management (battery), particularly in vehicles with alternative drives.

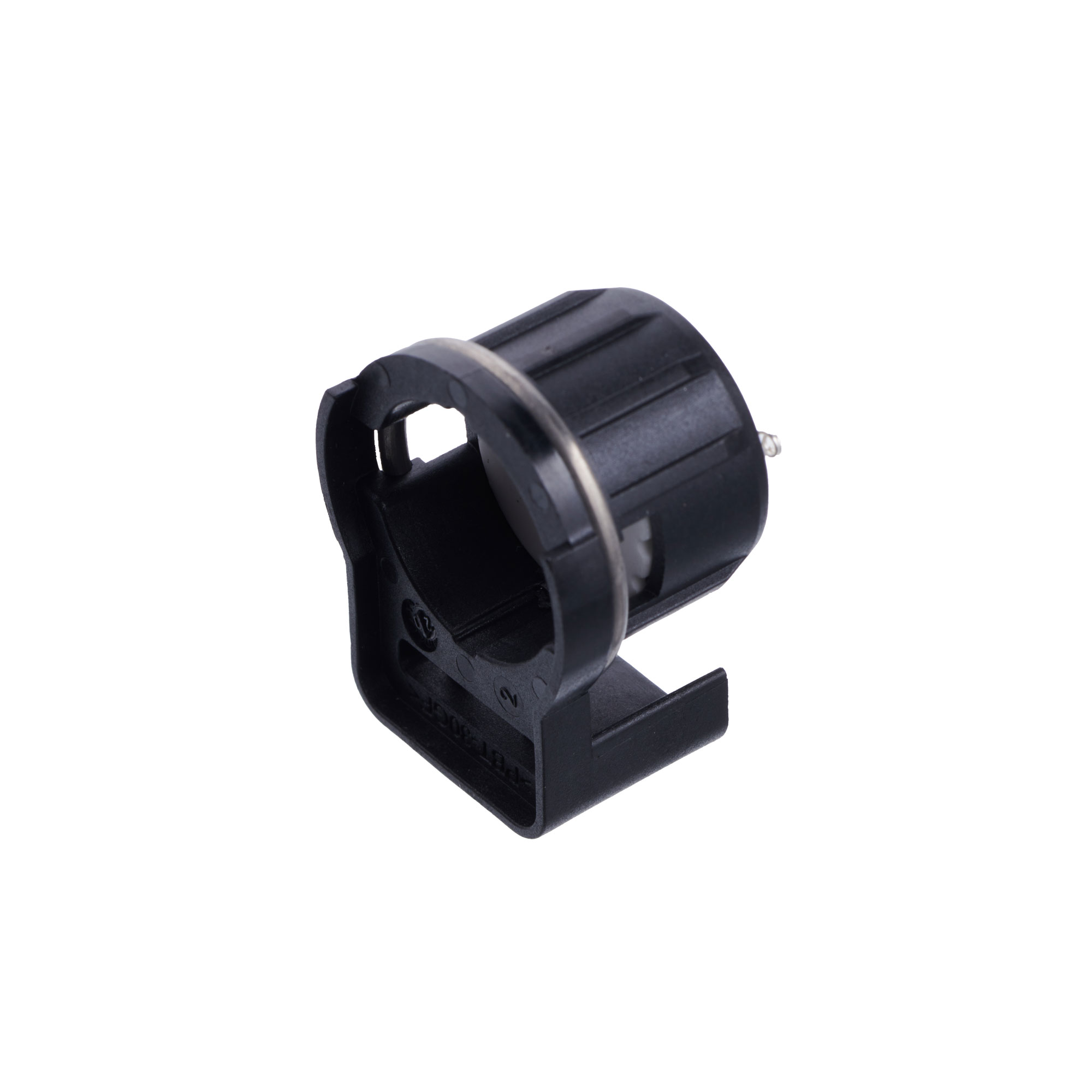

PTM pressure-sensor module
